Official MUTCD S1-1 School Zone Signs

Establish compliant safety perimeters with Federal School Zone Signs. We manufacture the official S1-1 School Zone Pentagon, "End School Zone", and mandatory "Drug Free School Zone" signage. Engineered with Fluorescent Yellow-Green (FYG) Diamond Grade reflectivity, our signs meet strict MUTCD Part 7 standards for visibility during critical dawn and dusk hours. Essential for Municipalities, School Districts, and SRTS projects.
Oops, no results found~

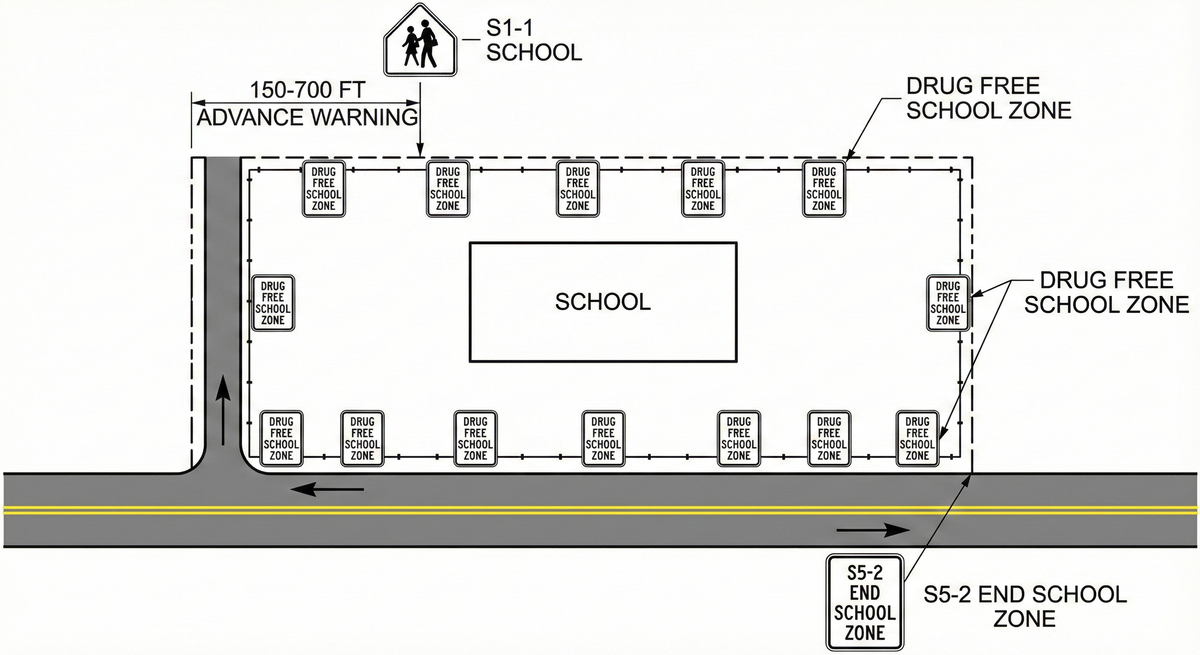

School Zone Perimeter Layout

A compliant zone requires a defined Start and End point:

  • Entry (Advance Warning): The S1-1 Pentagon placed 150-700 ft before the property line.
  • Perimeter (Legal): Drug-Free Zone signs placed at all property entrances and fence corners.
  • Exit (Termination): End School Zone (S5-2) placed at the boundary to restore normal traffic rules.

Federal Compliance for School Zone Safety (MUTCD Part 7)

Creating a legally enforceable School Zone requires more than just a speed limit sign. It requires a specific sequence of School Zone Signs (S-Series) to define the boundaries of the protected area. Under MUTCD Part 7, these signs serve as the visual "bookends" of the zone, alerting drivers that they are entering a high-risk environment where fines are often doubled and traffic patterns change.

The S1-1 School Zone Sign (The Pentagon)

The S1-1 School Zone Sign is the anchor of student safety.

  • The Shape Mandate: It is the only traffic sign in the federal code authorized to use the Pentagon (house) shape. This unique silhouette allows drivers to recognize a School Zone instantly, even if the text is obscured by snow or graffiti.
  • Placement Protocol: This sign acts as the "Advance Warning." It must be installed 150 to 700 feet in advance of the school grounds or the first student crosswalk to trigger the driver's heightened awareness.

Drug-Free School Zone Signage

Beyond traffic safety, schools must define their legal boundaries for criminal enforcement.

  • Federal & State Law: Most states require schools to post "Drug Free School Zone" or "Weapon Free Zone" signs at all entrances and perimeter fences.
  • Legal Enhancement: These signs act as the legal notice required to enforce enhanced penalties for narcotics or weapons violations committed within 1,000 feet of the property. We manufacture these on High Intensity Prismatic aluminum to ensure they remain legible for law enforcement 24/7.

The "Fluorescent Yellow-Green" (FYG) Standard

The era of "Standard Yellow" for schools is over.

  • The FYG Requirement: The FHWA now mandates Fluorescent Yellow-Green sheeting for all school warning signs (S1-1).
  • Dawn & Dusk Safety: We use 3M™ Diamond Grade (Type XI) FYG. This neon-lime material is engineered to convert short-wavelength light (twilight) into visible light, making the sign glow brilliantly during the morning drop-off and afternoon pickup windows when visibility is lowest.

End School Zone (S5-2)

The "End School Zone" sign is critical for traffic flow. It signals the legal termination of the restricted zone. Without this sign, the "Double Fines" or reduced speed rules effectively continue indefinitely until the next speed limit sign, which can lead to dismissed tickets in court due to "ambiguous zone boundaries."

Frequently Asked Questions

Common questions regarding MUTCD compliance, installation standards, and material specifications for regulatory signage.
Why must School Zone signs be pentagon shaped?

The Pentagon shape is reserved exclusively for School Zones by the MUTCD to provide instant visual recognition. Even in heavy fog or from the back, a driver knows that a pentagon shape means "Children Nearby." Using a Diamond (W-Series) sign for a School Zone advance warning is technically non-compliant.
What size School Zone sign do I need?

  • 30" x 30": The federal minimum for conventional single-lane roads and residential approaches.
  • 36" x 36": Required for multi-lane roads or approaches with speed limits over 35 MPH.
  • 48" x 48": Used for "Oversized" applications on high-speed arterials where maximum visibility is required.
Are "Drug Free Zone" signs required by the MUTCD?

They are not part of the Traffic code (MUTCD), but they are often required by State Education Codes and Federal statutes. They should be mounted on perimeter fences and building entrances, distinct from the roadway traffic signs, to establish the 1,000-foot legal enforcement boundary.

Need specific code assistance?

If your project requires a specific State DOT certification or a specialized variation not listed here, please contact our Compliance Support Team for a custom specification sheet.
